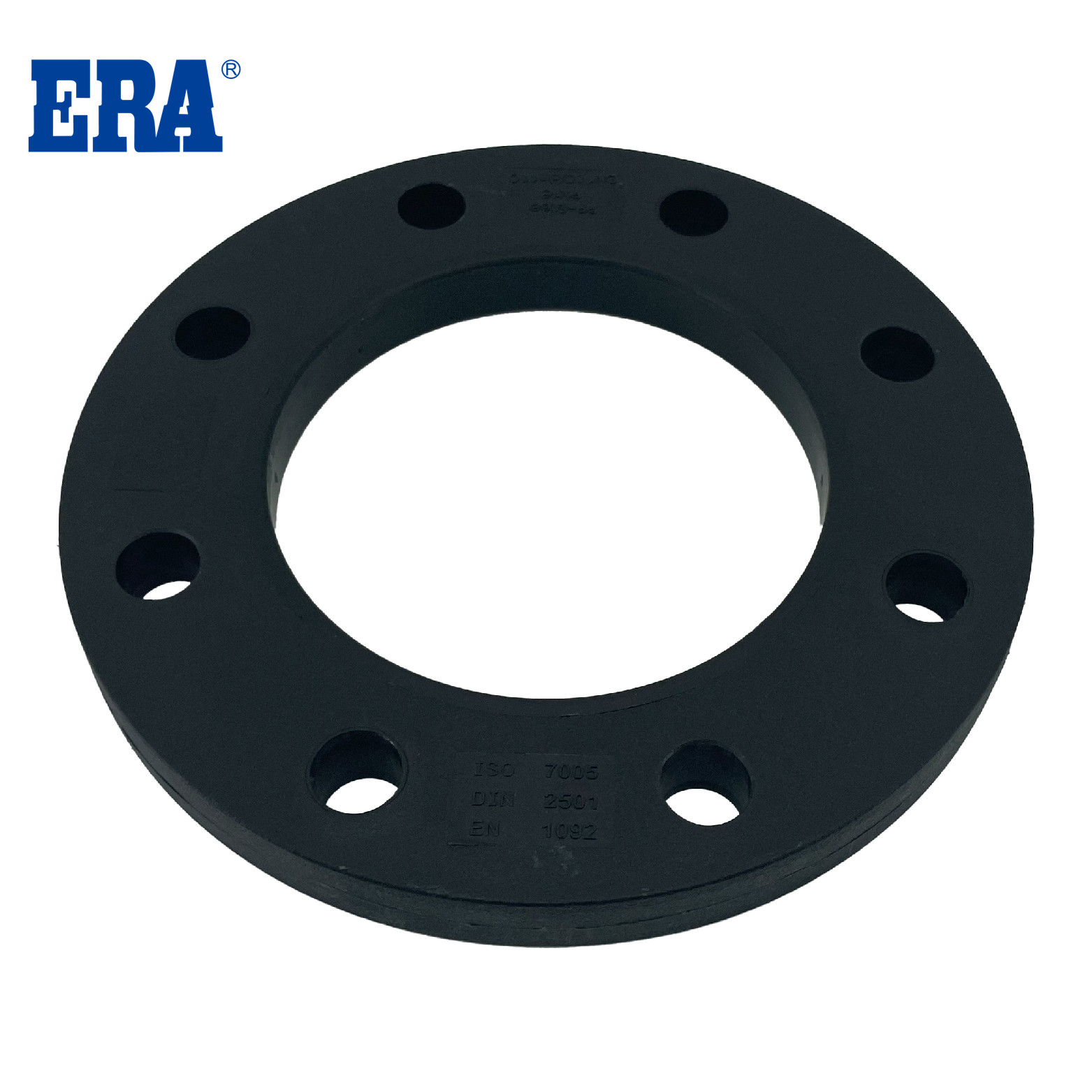

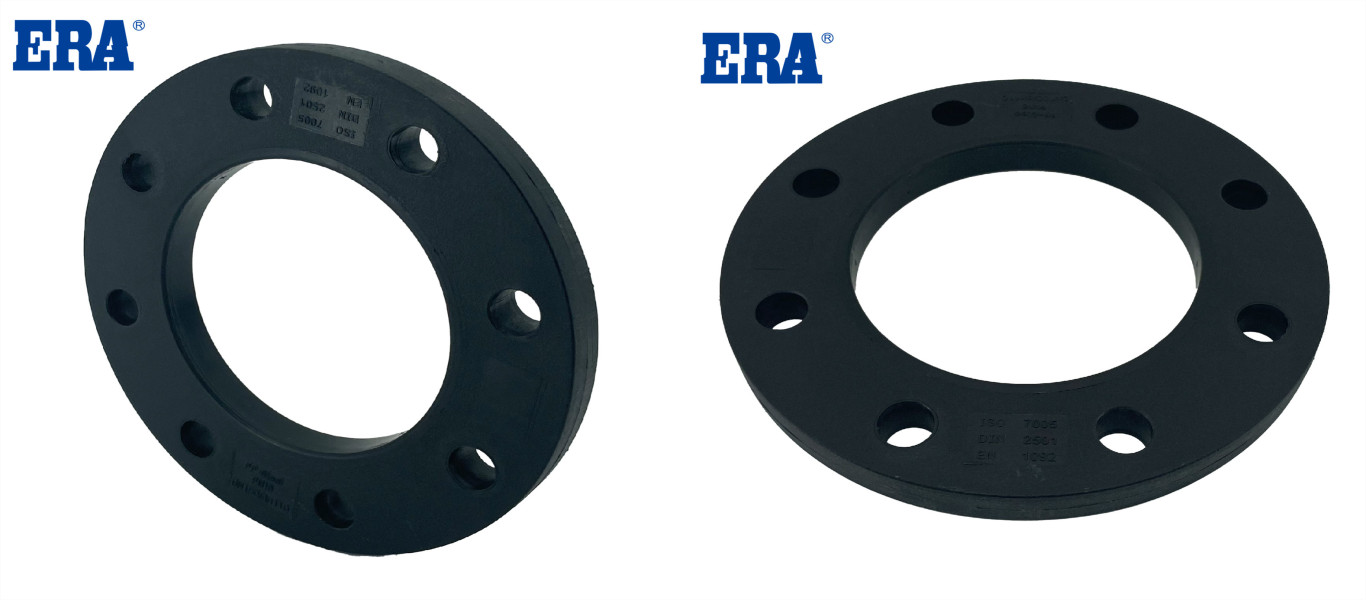

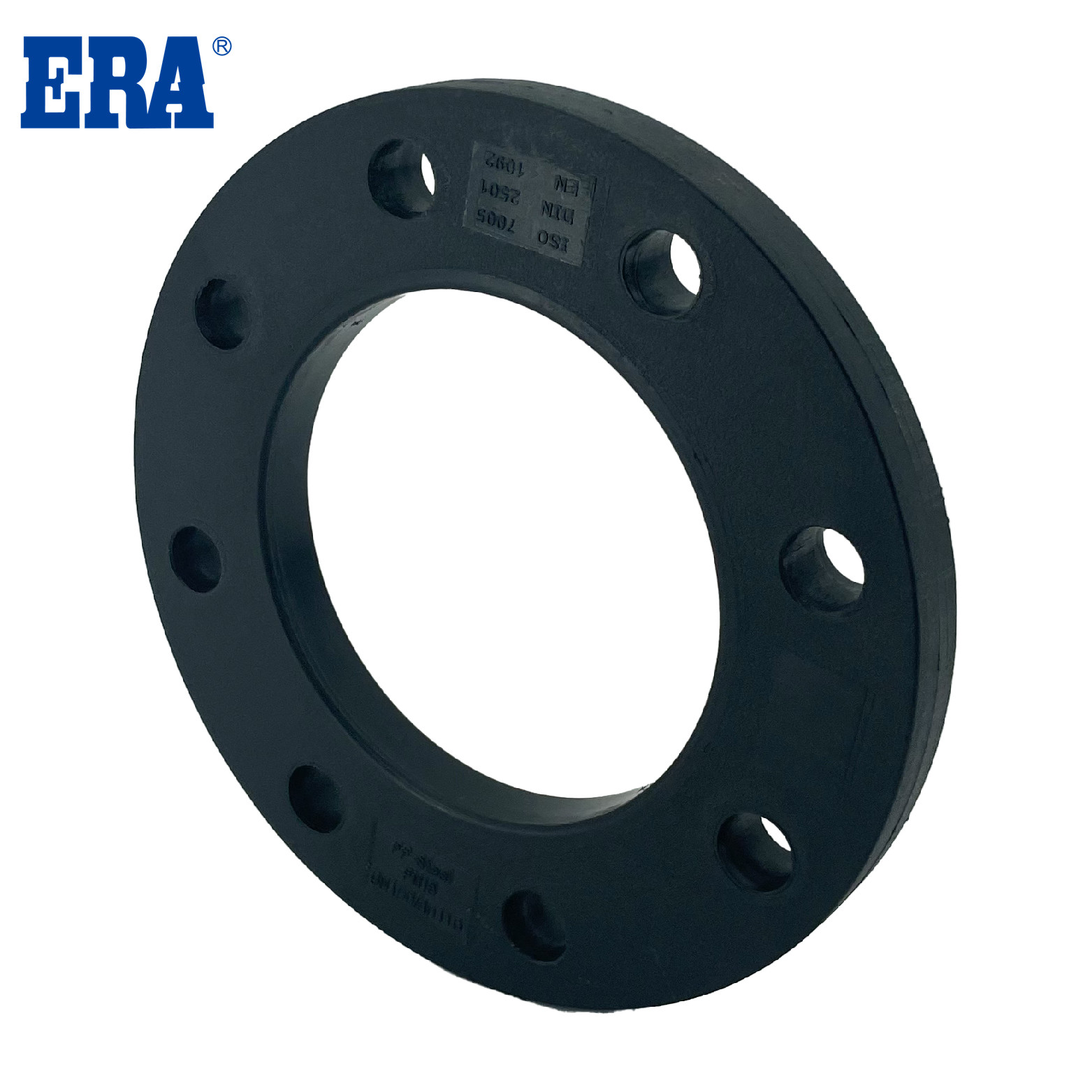

PP Coated Flanges (FRPP-Coated Steel Flanges/Backing Rings)

ERA BRAND PP coated flanges are manufactured using a carbon steel forged core fully encapsulated with polypropylene (FRPP) via injection molding. Designed for highly corrosive environments, they serve as a cost-effective alternative to traditional galvanized/coated steel flanges.

The product complies with multiple international standards, including GB/9119-2010, ISO 7005-1, DIN 2501/2576, and ASME B16.5. Available in a full size range from DIN15 to DIN800（1/2''-24''）, it supports pressure ratings of PN10/PN16 and 150 CLASS.

Key Advantages
1. Dual-Performance Combination
Steel Core Layer：

Carbon steel base provides high-strength support, ensuring structural stability.
PP Coating Layer：

Fully molded polypropylene (FRPP) encapsulation resists chemical corrosion from acids, alkalis, salt spray, and extreme environments (pH 1–14).

2. Long-Term Durability Design

UV stabilizers added, increasing outdoor service life by over 50%.
Maintains stable performance across a wide temperature range of -40°C to 110°C.

3. Significant Cost Efficiency
60–70% cost reduction compared to Hastelloy or stainless steel flanges.
Maintenance-free design reduces downtime and replacement frequency.

4. Industry-Leading Qualifications
Over 10 years of mature manufacturing processes with strict quality control, ensuring large-scale production reliability.
The only domestic supplier offering DN800 large-diameter flanges (PN10/PN16).

Application Fields
Water treatment / Swimming pool equipment
Aquaculture / Agricultural irrigation
Chemical industry / Environmental engineering
Offshore platforms / Power & metallurgy

Product ranges：
