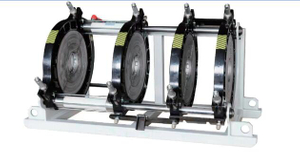

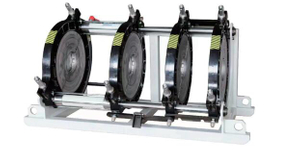

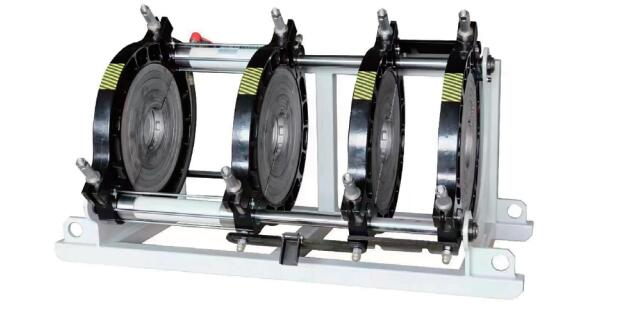

PEBW-500
| Size: | |
|---|---|
| Quantity: | |
Model | PEBW-500 |
Welding range(MM) | (optional 180,200,225,250),280,315,355,400,450,500 |
Docking deviation | ≤0.2mm |
Temperature deviation | ±10℃ |
Temperature control range | 0-270℃ |
Environmental temperature | -5-40℃ |
Time required to reach welding temperature | <20min |
Applicable materials | PE, PP-R, PB, PVDF |
Heating plate power | 8KW/220V |
Miling cutter power | 1.5KW/220V |
Hydraulic pressure station power | 1.1KW/220V |
Cylinder cross sectional area(cm2) | 20.38 |
Model | PEBW-500 |
Welding range(MM) | (optional 180,200,225,250),280,315,355,400,450,500 |
Docking deviation | ≤0.2mm |
Temperature deviation | ±10℃ |
Temperature control range | 0-270℃ |
Environmental temperature | -5-40℃ |
Time required to reach welding temperature | <20min |
Applicable materials | PE, PP-R, PB, PVDF |
Heating plate power | 8KW/220V |
Miling cutter power | 1.5KW/220V |
Hydraulic pressure station power | 1.1KW/220V |
Cylinder cross sectional area(cm2) | 20.38 |
