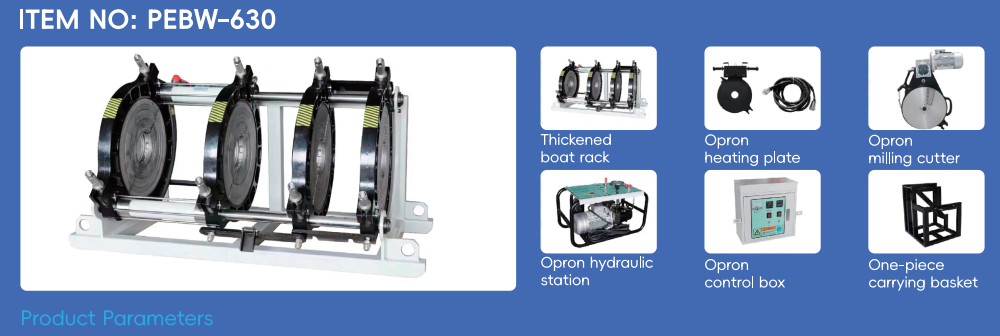

BUTT-FUSION WELDING MACHINE_PEBW-630

Welding range(MM)

(optional 315,355),400,450,500,560,630

Docking deviation

≤0.2mm

Temperature deviation

±10℃

Temperature control range

0-270℃

Environmental temperature

-5-40℃

Time required to reach welding temperature

<20min

Applicable materials

PE, PP-R, PB, PVDF

Heating plate power

9.2KW/220V

Miling cutter power

1.5KW/220V

Hydraulic pressure station power

1.1KW/220V

Cylinder cross sectional area(cm²)

23.06
