Ask a plant engineer why they replaced stainless steel with plastic on a hydrochloric acid line, and the answer is rarely cost. It is usually the third or fourth pipe replacement — and the realisation that the corrosion was never going to stop.
Chlorinated polyvinyl chloride — CPVC, also designated PVC-C — has been solving that problem since 1961. It is one of the few thermoplastics that combines genuine chemical resistance with a service temperature approaching 95 °C, which is why it now appears in fire sprinkler systems, hospital hot water loops, hotel HVAC risers and chlor-alkali plants alike.
But CPVC is also one of the most misunderstood materials in the catalogue. It is specified too conservatively in some projects and too optimistically in others — usually because the limits are documented in three different places and rarely in one.
This guide brings them together: what CPVC is, the properties that matter, how it compares with PPR, PEX, copper and stainless steel, where it belongs, where it must not be used, and how to specify it correctly.
Chlorinated polyvinyl chloride is a thermoplastic produced by chlorinating PVC resin. The chlorination reaction raises the chlorine content from roughly 57 % in PVC to 65–72 % in CPVC, and that single change is what produces the material's defining behaviour: higher heat resistance, better chemical resistance, and flame-retardant characteristics that PVC does not have.
CPVC was invented in the United States in 1958 and entered commercial service in 1961. From 1984 the US began adopting it in fire sprinkler systems, and the material spread to Europe, South America and Asia. By 2008 more than 1.3 billion metres of CPVC sprinkler pipe had been installed worldwide, and in the US CPVC holds approximately 35 % of the fire sprinkler pipe market. India has since become the world's largest single market for CPVC by volume.
CPVC pipe and fittings are also covered by a family of international standards — ASTM D2846 in North America, DIN 8079 in Europe, ABNT NBR 15884 in Brazil, and the GB/T 18993 and GB/T 18998 series in China — which is why the same base material appears under several quite different product designations.
Property | Value |
Long-term service temperature | −20 °C to 95 °C |
Coefficient of linear expansion | 0.07 mm/(m·°C) |
Thermal conductivity | 0.14 W/(m·K) |
Vicat softening temperature (pipe) | > 110 °C |
Ring stiffness | > 20 kN/m² |
Chlorine content | 65–72 % |
Joining method (CPVC to CPVC) | Solvent cementing (also called cold fusion) |
Joining method (to other materials) | Flanged or threaded connection |
Design life | 50 years (extrapolated, ISO/GB methodology) |
Two of these numbers deserve more attention than they usually get.
Service temperature. −20 °C to 95 °C is the *material* range. At the top end this is a pressure-bearing limit, not a free pass: as temperature rises, allowable pressure falls, and the derating is substantial. See the pressure section below.
Joining method. Solvent cementing — often called cold fusion — is not glue. The solvent cement chemically fuses the pipe and fitting at a molecular level, so the joint becomes the strongest part of the system rather than its weakest — the opposite of what happens at a welded or compression joint on metal pipe. This single property is the reason CPVC systems survive water hammer and seismic movement that opens up metal joints.
CPVC is strongly inert to most mineral acids, bases, salts and aliphatic hydrocarbons, and shows good resistance to strong oxidisers and halogens, including chlorine. Its advantage over other plastics becomes most pronounced at elevated temperature, where most competing thermoplastics begin to lose mechanical strength.
The corrosion mechanism it defeats most decisively is microbiologically influenced corrosion (MIC) — the dominant failure mode in HVAC and fire sprinkler piping. In metal systems, bacteria colonise the pipe wall, produce organic acids, and accelerate oxidation; the usual response is a chemical dosing and water treatment programme. CPVC is unaffected by those organic acids and does not require water treatment for that reason.
Flow capacity tells the same story over time. The Hazen-Williams C factor — the ratio of actual to theoretical maximum flow — behaves very differently for plastic and metal:
Material | New | 4–12 years | 13–20 years | 30–40 years |
CPVC | 150 | 150 | 150 | 150 |
Copper / stainless steel | 130–140 | 125 | 60–80 (replacement required) | — |
Cast iron | 120 | 107–120 | 65–80 (replacement required) | — |
Galvanised iron | 120 | 110–120 | 60–70 (replacement required) | — |
CPVC also has no galvanic corrosion risk, does not scale, and releases no heavy metal ions into the medium over its service life.
CPVC contains no heavy metal additives and does not leach toxic substances. Its chemical stability means it does not readily react with medicines, disinfectants or other treatment chemicals, protecting both the conveyed medium and the process.
Independent testing supports the antibacterial claim. Per the studies cited in our source material — a biofilm concentration study and a 120-day bacterial growth study from the Dutch research institute KIWA, and Legionella testing from the University of Bonn Institute for Hygiene and Public Health — bacterial growth inside CPVC pipe was found to be:
· 1/60 of the rate in PEX pipe
· 1/10 of the rate in copper pipe
· 1/4 of the rate in steel pipe
and Legionella counts in water samples were 1/13 of PEX and 1/17 of PP-R.
For hospitals, hotels, schools and any building with a potable water hygiene regime, this is often the deciding factor. Our CPVC product pages (https://www.erapipefittings.com/CPVC-ASTM-D2846-CTS-PIPES-FITTINGS-pd49987599.html) set out the potable-water certifications of the ASTM D2846 system.
CPVC's fire behaviour is unusual among thermoplastics and is the basis of its role in sprinkler systems.
Parameter | CPVC | Why it matters |
Limiting Oxygen Index (LOI) | 60 % | The percentage of atmospheric oxygen needed to sustain combustion. CPVC is effectively self-extinguishing in air. |
Flash ignition temperature | 900 °F (482 °C) | Higher than most competing plastics — harder to ignite in the first place. |
Flame spread index (UL) | 5 | Sprinkler pipe materials are required to fall within 4–18; CPVC sits at the bottom of that band. |
Smoke developed index (UL) | 35 | The permitted band for this application is 40–150, so CPVC sits below it. |
In direct combustion testing at 370–420 °C carried out by the Tianjin Fire Research Institute (Ministry of Emergency Management, China), the pipe surface carbonised while the pipe body remained intact — the char layer acts as an insulating barrier that slows further heat ingress. Where CPVC is involved in a building fire, independent studies (Harvard University, Boston; Southwest Research Institute, San Antonio) have measured peak hydrogen chloride concentrations of 232–280 ppm.
For regulated projects, CPVC sprinkler pipe classified to GB 8624-2012 as B1 (B-s1, d0, t1) — the "difficult to ignite, minimal smoke, no flaming droplets" class — is available.
CPVC's tensile strength is higher than the other common hot-water plastics, and its low linear expansion coefficient means it deflects less under thermal cycling, allowing wider support spacing than PPR or PEX:
Material | Tensile strength at 23 °C (MPa) | Linear expansion coefficient, mm/(m·°C) |
CPVC | 50 | 0.07 |
PPR | 30 | 0.11 |
PEX | 25 | 0.15 |
PB | 27 | 0.13 |
*Expansion coefficients are given in the same unit as the property table above, converted from the ×10⁻⁵ per °C figures in ERA's comparison data.*
In the seismic testing carried out by the engineering firm WJE, a CPVC sprinkler assembly with two 90° elbows was cycled through 150 mm of lateral movement at 0.04 Hz. After 50 cycles there were no leaks at either the joints or the pipe. The equivalent steel assembly began leaking at the 90° elbow after 33 cycles.
Installation labour is where CPVC wins most clearly. Cut-and-cement jointing is faster and needs no hot work, no welding equipment, no external power and no threading machine, and the source data puts installation time at one-half to one-fifth of the equivalent metal pipework.
The operational savings are structural rather than incremental:
· No scheduled maintenance. Metal systems require annual inspection, repair and, typically, replacement within 13–20 years as the C factor collapses.
· No replacement cycle. CPVC is designed for a 50-year life, matching the building's service life rather than undercutting it.
· No insulation replacement. Low thermal conductivity means thinner insulation and slower degradation.
· No repainting. Metal pipe exteriors need protective coating, and galvanised systems need re-galvanising at welded flanges. CPVC needs neither.
The economic case is reinforced by hydraulics. Because CPVC has a thinner wall for the same pressure class, its bore is larger — in a 70 °C hot water application requiring 0.6 MPa working pressure, an S6.3 CPVC pipe at dn25 has an internal diameter of 21 mm, against 18 mm for the equivalent PPR S3.2 pipe. At PN20 / DN15 the wall thicknesses are 1.9 mm (CPVC) against 3.4 mm (PP). In practice, a smaller CPVC size delivers the same flow.
CPVC's thermal conductivity is roughly one-half that of polypropylene and about 1/300 that of steel. In hot water and HVAC service this means smaller insulation thicknesses, lower heat loss and less frequent insulation renewal. It also reduces condensation on chilled water lines — a common cause of external corrosion and eventual leakage in steel HVAC pipework.
CPVC is a thermoplastic and is fully recyclable, both as production scrap and from demolished systems. Reclaimed material is reground and reused in drainage pipe and window profiles, and in products such as floor fillers, floor coatings, cable trays, speed bumps and automotive mats. In retrofit projects, testing after disassembly has shown that over 75 % of recovered CPVC pipe remains serviceable.
Parameter | CPVC | Stainless steel | Copper |
Corrosion resistance | Excellent; suitable for all water qualities | Good; passive chromium oxide film, suits most waters | Poor; attacked by low pH and aggressive water — erosion-corrosion at high velocity, pitting at low velocity, pitting above 60 °C. Unsuitable for hot water |
Water purity | Excellent; meets NSF and equivalent potable-water standards, usable in pure water systems | Good; metal ion release below WHO and EU drinking water limits | Vulnerable; corrosion, scale and solder flux contaminate the water and can form toxic copper chloride |
Electrolytic corrosion | None | High; external wall is vulnerable | High; external wall is vulnerable |
Internal surface | Absolute roughness 0.0015 mm — does not scale, low pressure loss, inhibits bacterial growth | Smooth when new, and the surface finish is largely maintained | Smooth when new, but roughens progressively as corrosion and scale develop |
Heat transfer | Low conductivity, low heat loss | ~150× the conductivity of CPVC — must be insulated | ~2,300× the conductivity of CPVC — must be insulated |
Water hammer | Minimal; damps vibration and noise | Pronounced; vibration and noise nuisance, structural fatigue | Pronounced |
Weight | 1/5 to 1/6 of steel or copper | Heavy | Heavy |
Installation | Simple cutting tools, cold fusion; 30 %+ labour saving | Metal cutting equipment, press fittings, external power required | Same, plus soldering |
Joints | High-strength engineered fittings; excellent system seismic resistance | Press-fit O-rings and seals degrade under thermal cycling, raising leak risk | Press-fit seals degrade; soldered joint quality is hard to control and the dissimilar expansion of solder and copper promotes leaks |
Expected service life | Long, designed for 50 years | Moderate | Moderate |
Maintenance | Few problems, fast repairs, low cost | Frequent problems, slow work, specialist labour, high cost | Slow, specialist, high cost |
First cost | Moderate | ~20 % above CPVC for 304 thin-wall material; roughly 40 % higher on a total-cost basis | More than double stainless steel |
Material | Hoop stress at 70 °C (MPa) | Temperature range | Antibacterial | Chlorine resistance | Thermal conductivity W/(m·K) | Joining | Exposed installation |
CPVC | 4.16 | −20 to 95 °C | Excellent | Excellent | 0.14 | Cold fusion — no bore reduction | Suitable |
PPR | 2.13 | −10 to 70 °C | Fair | Poor | 0.25 | Heat fusion — cold-weld and bore-reduction risk, burn risk | Fair; brittle at low temperature, weak under pressure at high temperature |
PB (polybutylene) | 5.04 | −20 to 70 °C | Fair | Poor | 0.22 | Heat fusion | Not suitable; performance degrades rapidly after external damage. Withdrawn from the North American market |
PP-RCT | 2.52 | −10 to 70 °C | Fair | Poor | 0.25 | Heat fusion after stripping the outer layer | Fair |
PE-RT Type II | 3.72 | −40 to 70 °C | Fair | Poor | 0.4 | Heat fusion | Not suitable; weak pressure performance at high temperature |
PEX | 3.54 | −40 to 70 °C | Fair | Poor | 0.35 | Cold expansion or mechanical fittings — needs working space, sensitive to workmanship | Not suitable; crosslinking level is difficult to control |
The pattern is consistent: CPVC is the only material in this table that is simultaneously rated to 95 °C, resistant to chlorine, and joined without heat. It is worth being precise about what follows from that. PEX is also accepted for sprinkler service in single-family residential systems under NFPA 13D and UL 1821. But for commercial light hazard and ordinary hazard Group I installations, CPVC is the thermoplastic that the sprinkler codes recognise — and it is the only one of these materials with a service temperature of 95 °C.
Chlorination raises the chlorine content from roughly 57 % in PVC to 65–72 % in CPVC. That single change lifts the service temperature from about 60 °C to 95 °C and materially improves chemical resistance — which is why PVC is used for cold water, drainage and DWV service, and CPVC for hot water, fire sprinkler and industrial chemical duty. In practice, a CPVC system is specified wherever the medium is above roughly 60 °C, wherever chlorine resistance matters, or wherever potable water quality must be maintained under hot conditions.
CPVC's pressure rating is not a single number. It depends on wall thickness, pipe diameter and operating temperature, and it must be derated as temperature rises. The table below shows the working pressure for two common CPVC pressure classes.
Temperature (°C) | Temperature (°F) | Derating factor | S10 / PN10 (MPa) | S6.3 / PN16 (MPa) |
21 | 70 | 1.00 | 1.00 | 1.60 |
38 | 100 | 0.85 | 0.85 | 1.36 |
49 | 120 | 0.70 | 0.70 | 1.12 |
60 | 140 | 0.55 | 0.55 | 0.88 |
66 | 150 | 0.47 | 0.47 | 0.75 |
71 | 160 | 0.40 | 0.40 | 0.64 |
82 | 180 | 0.25 | 0.25 | 0.40 |
93 | 200 | 0.20 | 0.20 | 0.32 |
Two further characteristics of the rating system are worth noting:
1. Smaller diameter means higher pressure. In a Schedule 80 system, a 1/2″ pipe is rated to roughly 850 psi at room temperature, while a 16″ pipe of the same schedule is rated to about 220 psi. All ratings assume a 50-year service life with a safety factor of 2.
2. Non-pressure service runs hotter. CPVC may be used at up to 110 °C in non-pressure (drainage and vent) applications, against 95 °C where it is carrying pressure.
CPVC has been in practical service in sprinkler systems since the 1980s, with over 1.3 billion metres installed globally. It resists ignition and flame spread, melts and chars in a controlled way rather than dripping and spreading fire, is smooth-walled and low-loss, is not subject to microbiological attack, and installs quickly and reliably with good pressure capability.
The applicable limits come from the sprinkler design codes. CPVC sprinkler pipe is specified for light hazard and ordinary hazard Group I occupancies. In light hazard areas it may be installed exposed; in ordinary hazard Group I areas it must be concealed above a ceiling. It is used in wet systems only — never for compressed air or other gases. Under the Chinese code framework (GB 50084 and CECS 234) it is also limited to DN80 and below for distribution and branch lines, served by quick-response sprinklers.
Its retrofit advantages are significant: CPVC flexes enough to route around obstructions in a finished building, needs no welding, metal cutting or threading equipment, keeps dust and noise to a minimum in occupied premises, and can be repaired quickly. Our CPVC fire protection product range covers the wet-system pipe and fittings.
This is where CPVC's combination of temperature and hygiene performance is most valuable:
· Domestic hot and cold water services
· Drinking water and direct potable systems
· Solar hot water and geothermal / hot spring water systems
· Heat pump swimming pool circuits
· Air conditioning chilled and hot water
· Electronics-grade deionised water
· Water features, fountain and landscape irrigation
· Secondary district heating networks
· High-temperature drainage
Because CPVC is chlorine resistant, maintains water quality, and — being non-metallic — cannot corrode from the inside out, hot water systems can be embedded in concrete screed. Its low oxygen permeability is a further advantage in closed heating circuits. PPR's long-term temperature limit of 70 °C rules it out of comparable duty.
HVAC water systems are an uncomfortable duty for metals. Supply temperatures swing from 5–9 °C chilled water to 40–65 °C heating water, treatment chemicals including acids, scale and corrosion inhibitors, and biocides are continuously dosed, and pipe runs are long enough that heat loss matters. Metal pipe walls also need external anticorrosion coatings, and galvanised systems need re-galvanising at welded flanges.
CPVC addresses each of these points directly: it tolerates the full −20 to 95 °C range, resists the treatment chemistry, needs no external coating, has a conductivity approaching that of insulation material itself, and its cold-fusion joints are stronger than the pipe body — which matters, because on steel the joint is where leaks start. Real-world replacements of corroded steel risers with CPVC are a common retrofit scenario; the SCH80 pressure range is the specification normally used for this duty. Our article on the practical applications of CPVC Schedule 80 fittings looks at this in more detail.
CPVC's chemical inertness, high-temperature performance, mechanical strength and non-conductivity make it a mainstream industrial material. It outperforms other plastics and — in many duties — stainless steel, resisting strong acids, alkalis and chlorine.
Typical industrial duties include:
· Chlor-alkali plants — catholyte (hot caustic), anolyte (chlorine-containing dilute brine), hydrochloric acid, wet chlorine gas, chlorine water, sodium hypochlorite and dilute sulphuric acid
· Water and wastewater treatment — primary treatment (biological matter, ferric chloride, alum, lime slurry, clarifier and thickener chemicals), secondary treatment (concentrated acids, alkalis, sodium hypochlorite), and tertiary treatment (final effluent, phosphorus and nitrogen removal filtration, chlorine disinfection), plus scrubbers, desalination and chemical dosing lines
· Pulp and paper — black liquor and spent acid, chemical recovery liquors (caustic soda, calcium carbonate, lime), pulp bleaching with chlorine dioxide, sulphuric acid and hydrogen peroxide, white liquor (sodium hydroxide, sodium sulphide), and additive lines for rosin, starch, titanium dioxide and waxes
· Food and beverage — hot hydrochloric and sulphuric acid solutions in processing areas
· Pharmaceuticals, biotechnology, semiconductor manufacturing, pure and ultrapure water, electroplating, metallurgy, mining, marine engineering and aquaculture
Any credible material guide has to state the limits. CPVC's are real, and specifying outside them is the most common way a CPVC installation fails.
Chemical limits. CPVC is not recommended for most polar organic solvents. Water-soluble organic solvents such as alcohols have no effect below certain concentrations, but aromatic hydrocarbons and other water-insoluble solvents are absorbed over time even at low concentrations, reducing service life. In drainage or gravity waste systems, chemical exposure varies too widely to generalise. In the presence of surfactants, certain oils and greases, CPVC under stress can show environmental stress cracking, softening and swelling.
Three specific warnings worth reproducing on site:
· Acetone. Primers, cleaners and adhesives with significant acetone content can cause rapid environmental stress cracking in CPVC, particularly when metal inserts are installed at freezing temperatures.
· Perfumes and essential oils. Never use cologne, perfume or essential oils (peppermint, orange peel, spearmint) to leak-test a CPVC system. Most aromatic chemicals and essential oils are strong solvents and will cause environmental stress cracking.
· Plasticiser-containing rubber and flexible materials. Certain rubbers and flexible materials are incompatible with CPVC. Incompatible plasticisers include, but are not limited to, phthalates, adipates, trimellitates and dibenzoates. Check gasket and seal materials before use.
Temperature and pressure limits. Ratings are always quoted at a stated temperature, and the derating is steep. Do not carry a single figure across schedules and diameters: schedule, diameter and temperature each change the number.
Support spacing. Because CPVC is less rigid than metal, it needs more hangers, closer together, than the metal equivalent. Support spacing tables are published in the relevant installation standards; under-supporting a hot line is a common cause of sagging and joint stress.
Fire sprinkler restrictions. Wet systems only; DN80 maximum; light hazard and ordinary hazard Group I; concealed installation in ordinary hazard Group I areas; quick-response sprinklers. These limits are set by fire protection codes and are not negotiable by the manufacturer.
Not every material suits every duty, and recognising CPVC's limits — and designing around them — is what makes the material selection correct rather than merely cheap.
Specify the standard before you specify the product. CPVC pipe and fittings are covered by:
Application | Standard |
CPVC hot and cold water distribution (North America) | ASTM D2846 |
CPVC pipe and fittings, Schedule 40 / 80 | ASTM F441 / F442 |
CPVC Schedule 80 threaded fittings | ASTM F437 |
CPVC fire sprinkler systems | ASTM F442, UL 1821, FM 1635 |
Rigid PVC and CPVC compounds | ASTM D1784 |
Potable water contact (North America) | NSF/ANSI 61, NSF-14 |
CPVC piping systems (Europe) | DIN 8079 |
CPVC piping systems (Brazil) | ABNT NBR 15884 / NBR 15884 |
Hot and cold water CPVC systems (China) | GB/T 18993.1 / .2 / .3 / .5 |
Industrial CPVC piping systems (China) | GB/T 18998.1 / .2 / .3 / .5 |
Fire sprinkler CPVC systems (China) | GB/T 39380, CECS 234, GB 50084, GB 50261 |
The ASTM D1784 classification code is the single most useful quality screen. It grades PVC and CPVC compounds by their base properties, and compounds meeting the higher cell classes have measurably better impact strength. As an illustration of how much this matters: systems built from higher-performance CPVC compounds can achieve impact strength more than three times that of standard CPVC, with a heat deflection temperature of 110 °C against 100 °C for standard material — meaning a lower probability of sagging or distortion in service, less breakage in handling and on site, and easier cutting.
The fittings matter as much as the pipe. A CPVC system is only as good as the weakest component, so the fittings must be rated to the same pressure as the pipe, with the creep resistance and long-term hydrostatic strength to match. Our standards overview (https://www.erapipefittings.com/international-standards-for-plastic-pe-pipes-fittings-a-comprehensive-guide.html) covers the wider standard set that ERA products are manufactured to.
· Cold fusion only, for CPVC to CPVC. Use the correct solvent cement for the pipe diameter and application, apply to both surfaces, and allow the full cure time before pressure testing. The joint cures to a strength greater than the pipe itself.
· Transitions to other materials are made with flanged or threaded connections. Never solvent-weld CPVC to another plastic.
· Do not use incompatible sealants, primers or leak-test fluids. See the chemical limits above.
· Allow for expansion. CPVC expands 0.07 mm per metre per °C. Long hot-water runs need expansion loops or offsets.
· Support at the specified spacing — closer than you would support metal pipe, especially on hot lines.
· Buried installation: for outdoor buried CPVC cold water lines, direct burial is acceptable in suitable soil; in poor soil add a sand bedding layer or local reinforcement. Hot water lines should be installed above ground or in a duct. Minimum cover is 0.5 m under non-traffic areas and 0.7 m under vehicle traffic, and freeze protection must be provided.
· UV exposure. CPVC is suitable for outdoor service. It may discolour on the outer surface over time — this is normal surface weathering, not structural degradation; a cross-section shows that the discolouration is confined to the outermost layer. Where a pristine appearance is required, coat the pipe with a water-based latex paint, which also adds UV protection.
Is CPVC pipe safe for drinking water?
Yes, where the product is certified to the relevant potable water standard. CPVC contains no heavy metal additives, does not leach toxic substances, and its chemical stability means it does not readily react with disinfectants or other treatment chemicals. For North American projects, specify systems carrying NSF/ANSI 61 and NSF-14 certification.
What is the maximum temperature for CPVC pipe?
95 °C in pressure service, and up to 110 °C in non-pressure (drainage and vent) applications. The working pressure falls as temperature rises — at 82 °C a PN16 pipe is derated to about 0.40 MPa.
CPVC or PPR — which should I choose for hot water?
CPVC is the higher-performing choice on the two parameters that usually decide the question: temperature (95 °C against 70 °C long term) and chlorine resistance (excellent against poor). CPVC also joins by cold fusion rather than heat fusion, which removes the burn risk and the bore-reduction and cold-weld failures associated with heat-fused joints. PPR remains a cost-effective option for cooler-duty applications.
Can CPVC be used for compressed air?
No. CPVC fire sprinkler pipe is suitable for wet systems only — never for compressed air or other gases.
Is CPVC better than stainless steel?
For most fluid-transfer duties, yes — CPVC resists a wider range of aggressive chemicals without corrosion, weighs a fifth as much, insulates far better, does not suffer electrolytic corrosion, does not scale, and installs faster. Stainless steel remains the right answer where mechanical abuse, very high pressure or temperatures above CPVC's range are expected.
What is the difference between CPVC and PVC?
Chlorination raises the chlorine content from around 57 % in PVC to 65–72 % in CPVC. That change lifts the service temperature from about 60 °C to 95 °C and improves chemical resistance, which is why CPVC is used for hot water and fire sprinkler service while PVC is used for cold water, drainage and DWV.
CPVC is not a single product. It is a family of systems differentiated by dimension standard, wall thickness and certification — and the same nominal pipe size can be a residential hot water line or an industrial process line depending on which one you choose. Our article on why CPVC is worth specifying covers the material case; the practical decision comes down to three questions:
3. What is the application and hazard class? Fire sprinkler service, potable hot water and industrial chemical transfer each point to a different standard and wall thickness.
4. What is the temperature and pressure duty? Work back from the derated pressure at the working temperature, not from the ambient rating on the datasheet.
5. Which dimension standard does the project use? American projects specify to ASTM; European projects to DIN; Brazilian projects to ABNT NBR; Chinese domestic projects to GB/T. Sizes and tolerances are not interchangeable between them.

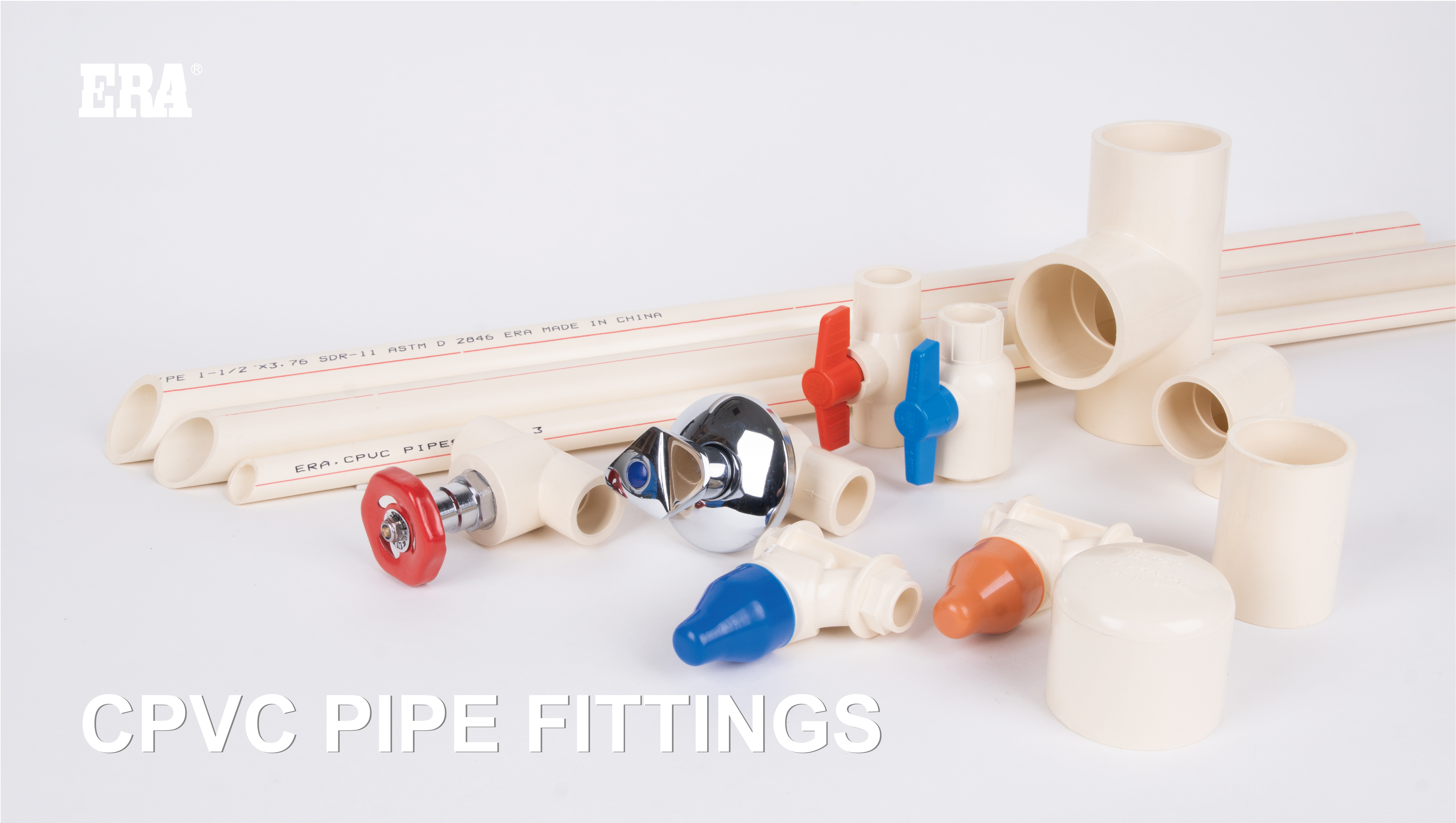

ERA manufactures CPVC in three series, each built to its own standard and dimension system:
Series | Standard | Size range | Colour | Typical duty |
Residential | CPVC ASTM D2846, CPVC DIN, CPVC NBR | 1/2″ – 2″ | Beige | Hot and cold water, general purpose; thinner wall, lower cost, easy installation. For non-high-rise residential buildings |
Industrial | CPVC SCH80 (ASTM F439) | 1/2″ – 12″ | Light grey | Hot and cold water plus mildly corrosive media; heavier wall, higher pressure rating. Suitable across applications |
Fire protection | CPVC Fire Protection (ASTM F442) | 1/2″ – 4″ | Orange | Wet sprinkler systems in residential and commercial buildings |
Because we manufacture to multiple dimension systems, our production and quality teams work to the destination standard — ASTM D2846 to North American requirements, DIN 8079 for European projects, ABNT NBR 15884 for Brazil and GB/T 18993 / 18998 domestically.
Quality control is built around the ASTM D2846 test regime. For NSF-certified CPVC fittings, testing covers chemical raw material analysis (annual), residual vinyl chloride testing (annual), a 4-hour hydrostatic test at 82.2 °C and 2.51 MPa with no failure, a 6-minute hydrostatic test at 82.2 °C and 3.59 MPa with no failure, and thermal cycling through 1,000 cycles between 16 °C and 82 °C without rupture or leakage — alongside dimensional and tolerance verification and third-party verification. Our CPVC flattening test article shows how the pipe behaves under deformation testing.
