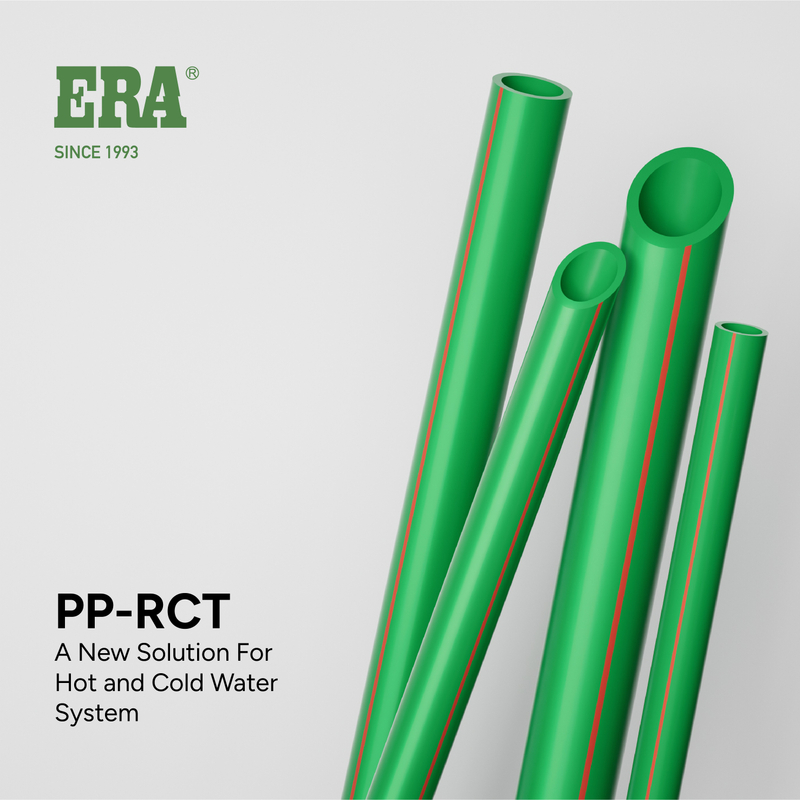

PP-RCT PIPE SERIES
Product Code No.: PR001
Raw Material:PP-RCT
Standards: DIN8077/8078 ISO15874
Diameter (mm) | S5 (SDR11,PN12.5) | S4 (SDR9,PN16) | S3.2 (SDR7.4,PN20) | S2.5 (SDR6, PN25) |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.6 |
