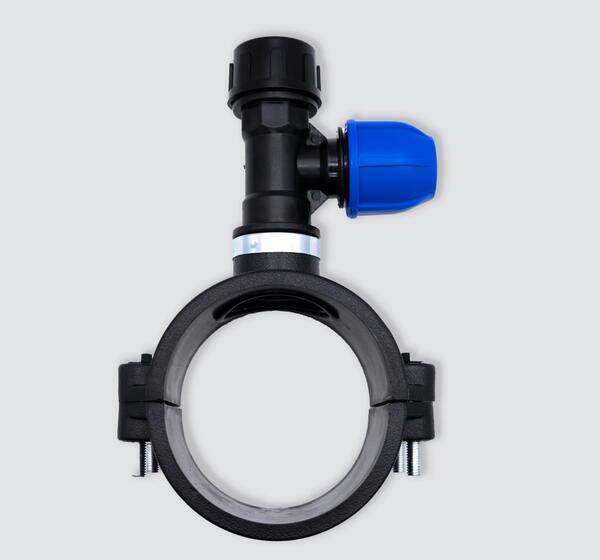

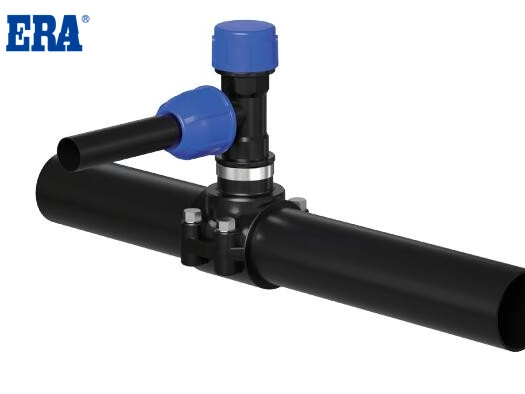

PP Saddles and Tapping Ferrules – Professional Branch Connection Solutions
ERA offers high-performance PP Saddles and Tapping Ferrules, designed for safe and efficient branch connections on pressurized PE, PP, and PVC-U pipelines. These products allow easy system expansion or modification without interrupting the main water supply, making them ideal for municipal, industrial, and agricultural applications.
Suitable for PE, PP, and PVC-U pipelines. Compliant with ISO 4427, ISO 15874, ISO 1452, AS/NZS 4130, and other international standards.
Enable branch connections under pressure with no need to shut off water—minimizing downtime and operational costs.
Body：High-quality PP (Polypropylene)
Seals：NBR O-rings (temperature range: -20°C to +120°C)
Bolts & Cutting Elements：Zinc-plated steel or stainless steel
Reinforcement Rings：Stainless steel
Clamp-style design with dual bolt fastening allows tool-free or minimal-tool assembly. Reduces installation time by up to 50%.
Advanced sealing ring design with reinforced grip ensures reliable and long-term leak-proof connections.
Available in branch sizes from ½" to 4" and main pipe sizes from 20mm to 200mm. Both threaded and compression outlets available.
Municipal Water Networks – Adding new subscriber connections or hydrants
Industrial Pipelines – Modifying or expanding process fluid lines
Agricultural Irrigation – Introducing new take-off points without system shutdown
Emergency Repairs – Temporary or permanent bypass and branch installations

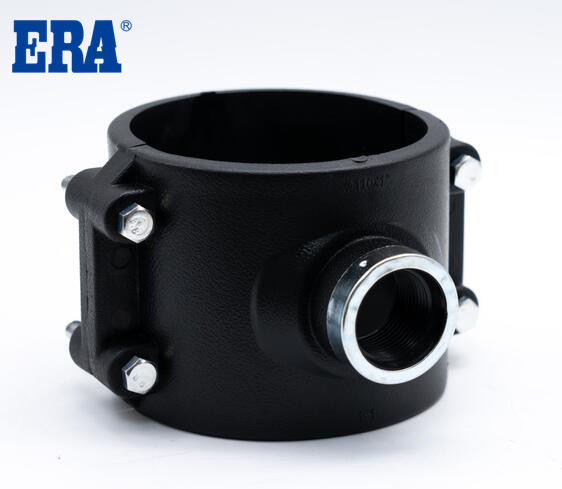

ERA Saddle Clamps Product Introduction
Saddle Clamps are universal branch connection devices specifically designed for PE, PP, and PVC-U pipelines, compliant with international standards such as EN 12201, ISO 3607, and DIN 8077. Featuring a modular structure and high-performance materials, they enable safe and efficient pressurized pipeline branching operations.
Compatible with PE, PP, and PVC-U pipelines, suitable for industrial and municipal applications.
NBR sealing ring (-20℃ to +120℃) combined with stainless steel reinforcement rings ensures excellent leak-proof performance.
Clamp-style design supports pressure-resistant operations without water shutdown or complex tools, reducing installation time by 50%.
PP body resists aging, zinc-plated bolts prevent rust, with a service life exceeding 15 years.
1. Branch modification of municipal water supply networks
2. Expansion of industrial fluid delivery systems
3. New water intake points in agricultural irrigation pipelines
4. Temporary pressurized connections in emergency repairs

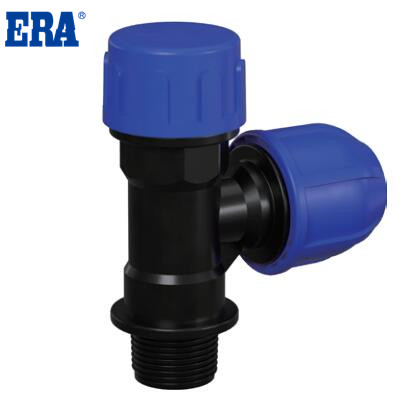

ERA Tapping Ferrules Product Introduction
Tapping Ferrules are professional components designed for creating branch connections on PE/PVC main pipelines under pressure. They enable safe and efficient branching operations without interrupting water supply, making them an ideal solution for pipeline system maintenance and expansion.
1. Simple operation, no special tools required
2. Pressure-resistant operation, no need to stop water flow
3. 360° adjustable outlet direction for complex working conditions
1. Integrated valve and cutter design
2. Multi-material construction: PP + POM +stainless steel + NBR
3. Wide size compatibility: 1" to 1.25"
1. Dual interface options: threaded and compression
2. Suitable for various pipeline connection requirements
3. Durable construction with long service life
