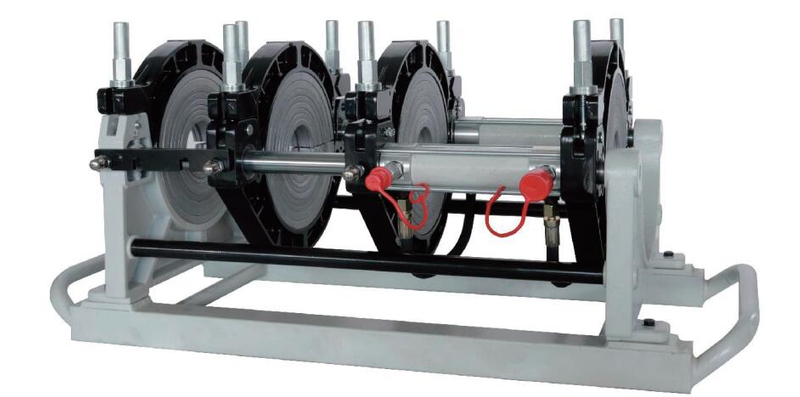

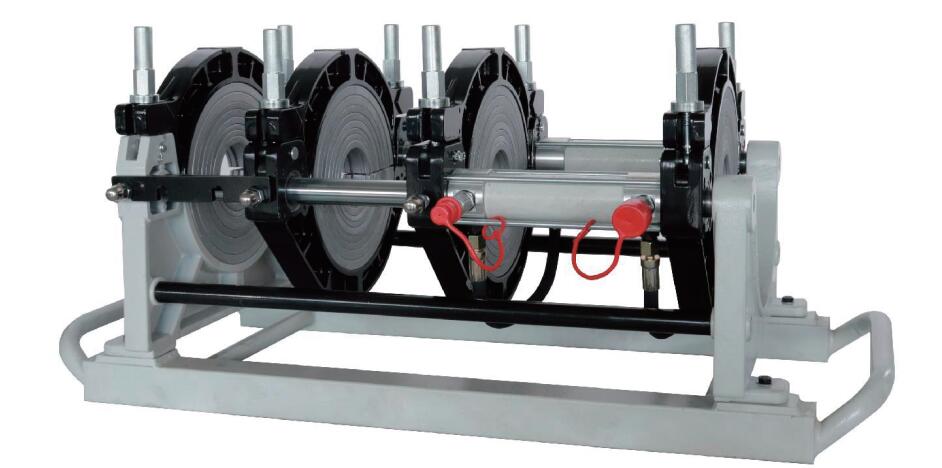

PEBW-250
| Size: | |
|---|---|
| Quantity: | |
Model | PEBW-250 |
Welding range(MM) | (63,75) 90,110,125,140,160，180，200,225,250 |
Docking deviation | ≤0.2mm |
Temperature deviation | ±5℃ |
Temperature control range | 0-270℃ |
Environmental temperature | -5-40℃ |
Time required to reach welding temperature | <20min |
Applicable materials | PE, PP-R, PB, PVDF |
Heating plate power | 2.5KW/220V |
Miling cutter power | 2.5KW/220V |
Hydraulic pressure station power | 0.75KW/220V |
Cylinder cross sectional area(cm2) | 9.42 |
Model | PEBW-250 |
Welding range(MM) | (63,75) 90,110,125,140,160，180，200,225,250 |
Docking deviation | ≤0.2mm |
Temperature deviation | ±5℃ |
Temperature control range | 0-270℃ |
Environmental temperature | -5-40℃ |
Time required to reach welding temperature | <20min |
Applicable materials | PE, PP-R, PB, PVDF |
Heating plate power | 2.5KW/220V |
Miling cutter power | 2.5KW/220V |
Hydraulic pressure station power | 0.75KW/220V |
Cylinder cross sectional area(cm2) | 9.42 |
