Short answer: For trenchless power duct installation, MPP (modified polypropylene) conduit is the specification that most often wins — it delivers ring stiffness of 40 kN/m² and above, allows pulls of 1,000 m or more in a single run, carries tensile strength greater than 25 MPa, and is joined by thermal fusion so the joint is as strong as the pipe body. Those four properties are exactly what a pull through interbedded clay and gravel punishes.
If you are specifying a conduit for horizontal directional drilling (HDD), pipe jacking or pipe ramming, this guide explains what to demand, how MPP compares with HDPE, steel and FRP, and how to check a supplier's data sheet.
Trenchless technology covers the methods used to inspect, install, replace or rehabilitate underground utilities with minimal surface excavation. The International Society for Trenchless Technology (ISTT), founded in 1986, groups the main techniques into families: horizontal directional drilling, pipe jacking and microtunnelling, auger boring, direct steerable pipe thrusting and pipe ramming, alongside a wide range of lining and rehabilitation systems (method catalogue).
Trenchless power conduit route diagram across a transport hub
For power networks the appeal is obvious. A duct can be installed under a live runway, a motorway, a river or a fully built-up city block without opening the surface — which is why trenchless methods dominate duct installation on airports, metro systems and dense urban grids.
Open-cut trenching remains the cheapest option on greenfield land. It stops being an option when:
Power conduits installed beneath a sunken roadway under a terminal canopy
· Traffic cannot be interrupted. Cutting a road severs a whole district's movement, and the socio-economic cost often exceeds the pipeline budget.
· The underground is already crowded. Relocating existing water, gas, telecom and power lines is slow, expensive and risky.
· The ground is unstable. In soft silt and fine sand, open trenches settle, collapse or displace the pipe.
· The site is operationally live. Airports, ports and industrial plants cannot halt operations for months of civil works.
· Dust, noise and vibration matter. Residents and businesses adjacent to the works are directly affected — and on the Shanghai Eastern Hub project, dust pollution was reported as 90% lower than with conventional excavation.
A conduit designed only for open-cut burial will usually fail in a trenchless pull. Check these five points before you approve a supplier:
1. Tensile strength. The pipe is pulled or pushed by its own ends. Insufficient tensile strength means the conduit fractures mid-run.
2. Ring stiffness. Deep burial plus overburden and traffic load will ovalise a flexible duct that lacks stiffness.
3. Bend performance. Long pulls follow a curved trajectory. A conduit that will not bend to it drifts off line and the installation fails.
4. Joint integrity. Joints carry the full pulling load and must be leak-free. Fusion-welded joints that match the pipe body's strength are the reference standard.
5. Surface condition. Any scratch or score on the wall during the pull becomes a weak point in service. A smooth, hard bore reduces pulling friction.
ERA's MPP (modified polypropylene) power conduit is specified on projects including the T3 terminal of Pudong International Airport. Its published data sheet gives the numbers that matter for trenchless work:
Fusion-welded pipe joints assembled underground
Property | Published value | What it decides |
Ring stiffness | ≥ 40 kN/m² | Resistance to deformation under deep burial and sustained load |
Pull length | ≥ 1,000 m | Maximum single-run installation without an intermediate shaft |
Tensile strength | > 25 MPa | Ability to survive pulling and jacking forces |
Joint method | Thermal fusion welding | Joint strength equal to the pipe body; sealed, continuous duct |
Heat resistance | Vicat softening temperature > 93 °C | Stability under continuous cable heat load |
Low-temperature impact | Retains impact resistance at −5 °C | Handling and installation in cold conditions |
Internal roughness | Absolute roughness ratio ≈ 1/20 of steel, 1/10 of FRP | Lower cable-pulling friction; easier future expansion |
Corrosion resistance | Resists acids and alkalis in soil | Service in aggressive ground and coastal conditions |
Design service life | Up to 70 years | Matches the design life of major civil structures |
The material itself is inert polypropylene, which is why the conduit does not degrade in saline or chemically active ground — a decisive factor at coastal sites.
Dimension | MPP power conduit | HDPE (PE) | Steel | FRP / GRP |
Material | Modified polypropylene | Polyethylene | Carbon steel | Glass-fibre reinforced plastic |
Ring stiffness | ≥ 40 kN/m² (published) | Depends on wall thickness / SDR | Very high (rigid) | Moderate to high (rigid) |
Tensile strength | > 25 MPa (published) | High, with elongation at break above 350% | High | Moderate |
Heat resistance | Vicat > 93 °C | Lower continuous service temperature than MPP | High | High |
Corrosion behaviour | Resistant, no lining required | Resistant | Requires coating and often cathodic protection | Resistant |
Jointing | Thermal fusion; strength equal to pipe body | Heat fusion / electrofusion, fully sealed | Welded or flanged | Bonded or bell-and-spigot |
Weight | Light | Light | Heavy — lifting plant required | Light to moderate |
Typical best fit | Trenchless power ducts with high cable load or high ambient temperature | Water, drainage and gas mains; urban trenchless renewal | High-pressure and above-ground runs | Chemical plants and aggressive media |
How to read this table. HDPE remains the better choice where maximum flexibility and very low-temperature impact resistance dominate — its usable range extends to −20 °C, and it is the established material for trenchless water and drainage renewal. MPP earns its place specifically on power ducts, where the combination of higher heat resistance, higher stiffness and long pull capability matters more than extreme flexibility. Steel wins on load but loses on corrosion, weight and joint count; FRP wins on corrosion but costs more and is less forgiving of bending during installation.
Before approving an MPP power conduit for a trenchless project, request:
· Ring stiffness test data (kN/m²) at the specified wall thickness — not a generic catalogue claim.
· Tensile strength and elongation at break from the material batch.
· Maximum recommended pull length for your specific trajectory and soil type.
· Joint method and joint efficiency — confirm the fusion joint reaches pipe-body strength.
· Vicat softening temperature if cable load or ambient temperature is high.
· Corrosion and chemical resistance statement for your soil and groundwater chemistry.
· Reference projects with comparable pull lengths, burial depths or ground conditions.
· Airports and transport hubs — runway and apron crossings, terminal power distribution, air-rail interchanges.
· Urban power grids — duct banks beneath roads and plazas where open excavation is prohibited.
· Metro and rail corridors — cable ducts beneath operational track.
· Ports and industrial parks — coastal ground with saline groundwater.
· River and highway crossings — long single-run pulls where intermediate shafts are impossible.
Pudong International Airport T3 terminal aerial view

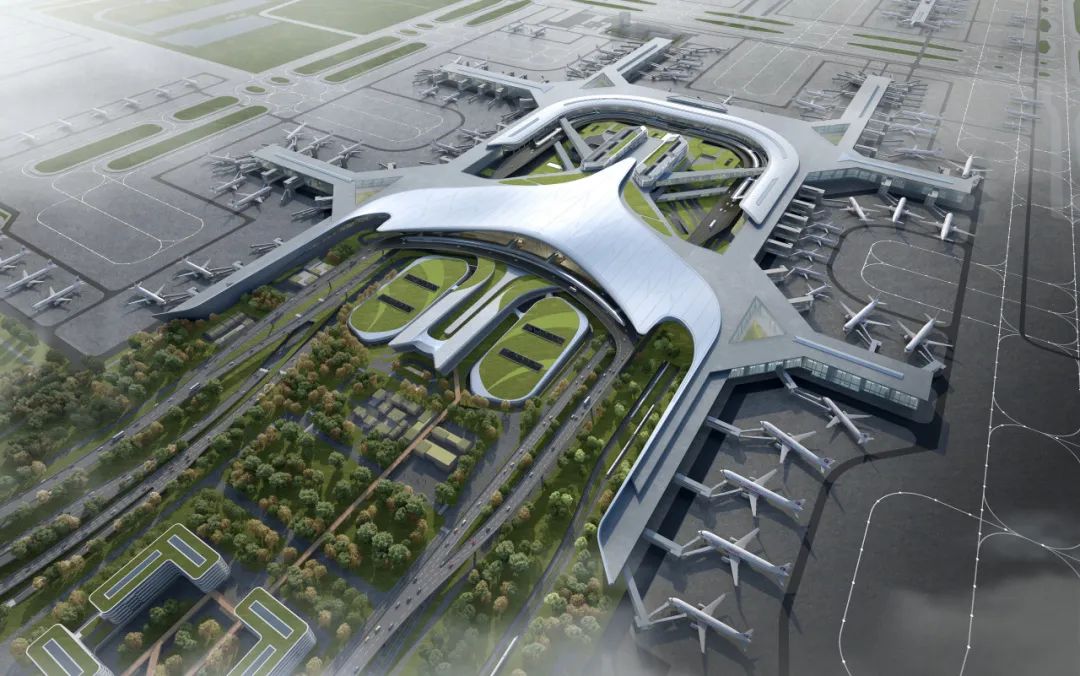

Airport terminal aerial view with aircraft at gates
ERA MPP power conduit was applied to the underground power conduit network of the T3 terminal at Pudong International Airport, part of Shanghai's Eastern Hub. The site combined interbedded clay and gravel strata, confined groundwater, no-flight-stop construction windows and a saline coastal environment — a combination that made trenchless installation the only realistic route and made conduit stiffness, tensile strength and joint sealing the deciding specification points.
Shanghai Eastern Hub terminal facade at dusk
Read the full project story: [Mega Project | ERA MPP Power Conduits Build the "Power Lifeline" of Shanghai's Eastern Hub](https://www.erapipefittings.com/megaproject-era-mpp-power-conduits-shanghai-eastern-hub.html)
What is an MPP power conduit used for? It is a duct for underground power cables — the protective pathway that carries high-voltage and low-voltage cable runs beneath airports, roads, plazas and industrial sites. It protects cables from soil chemistry, water ingress and mechanical load, and allows cables to be pulled and replaced without re-excavation.
How long can an MPP conduit be installed in one trenchless run? ERA MPP power conduit is rated for pull lengths of 1,000 m and above. The practical maximum on a given project also depends on the trajectory's curvature, the soil type, the winch capacity and the number of joints in the string.
What is the difference between MPP and HDPE for underground power ducts? MPP is a modified polypropylene with a higher heat resistance (Vicat above 93 °C) and higher ring stiffness than HDPE, which suits buried power ducts carrying heavy cable loads. HDPE is more flexible and performs better at very low temperatures, which is why it dominates trenchless water and drainage renewal. For power duty in warm or high-load conditions, MPP is normally the stronger fit.
Can MPP power conduit be used in coastal or high-salinity ground? Yes. The conduit is made from inert polypropylene and resists attack from soil acids and alkalis, so it performs in saline groundwater and coastal environments where coated steel would need additional protection.
What voltage can MPP power conduit carry? ERA's MPP power conduit is rated to withstand voltages above 100 kV, which covers the high-voltage distribution typical of major transport hubs and utility duct banks.
How are MPP power conduits joined, and are the joints watertight? They are joined by thermal fusion welding. The resulting joint reaches strength comparable to the pipe body, so the duct behaves as one continuous sealed element rather than a chain of connected sections — the key requirement for surviving a long pull and for keeping water out in service.
How long does an MPP power conduit last? Under normal buried service conditions the conduit is rated for a design service life of up to 70 years, with a smooth bore that resists scaling so cable pulling and future upgrades stay straightforward.
Do I still need MPP conduit if the ground is stable and open-cut is possible? Not necessarily. Open-cut with a lower-cost conduit is often the right answer on greenfield land. MPP's advantages — stiffness, tensile strength and fusion joints — are what you pay for when the installation method is trenchless or when the cable load and thermal environment are demanding.
Trenchless installation is now standard practice for power ducts on airports, metros and dense urban grids, and it shifts the engineering risk from the excavation to the pipe. A conduit specified for trenchless work has to be strong in tension, stiff enough for deep burial, smooth enough to pull easily and joined so that the joint is not the weak point.
That is the specification ERA's MPP power conduit was built for, and it is why it was selected for the underground power network at Shanghai's Eastern Hub.
